Nutrient Controller
  • Nutrient Controller
  • Nutrient Controller
  • Nutrient Controller
  • Nutrient Controller
  • Nutrient Controller

Nutrient Controller

Input Power:AC 110–240V / 50–60Hz
Working Temperature:4–40°C
Product Size:49 × 43 × 34.5cm / 49 × 43 × 43.5cm
Color:Black
Sensors:pH Sensor, EC Sensor, Built-in Temperature Sensor
Dosing Pumps:Four Dosing Pumps
Optional System:Irrigation System
Suitable Systems:Hydroponic farms, greenhouses, vertical farms, indoor farming, soilless cultivation
  • Facebook
  • Youtobe
  • Linkin
  • TikTok
  • Instagram
  • Product Details

The Nutrient Controller is an automatic nutrient solution management device designed for hydroponic farms, greenhouses, vertical farming systems, and commercial soilless cultivation projects. It monitors pH, EC, and water temperature while automatically adjusting the nutrient solution through integrated dosing pumps.

In hydroponic growing systems, plants receive water and essential nutrients directly from the nutrient solution rather than soil. Maintaining suitable pH and EC levels is therefore important for nutrient availability and consistent plant growth. Manual testing and adjustment can become time-consuming, especially in large-scale growing operations.

The G&N Hydroponic Nutrient Controller GN01 combines digital monitoring, automatic pH adjustment, nutrient dosing, and alarm protection in one integrated system. Equipped with four dosing pumps, it can handle different liquid inputs, including pH Up, pH Down, nutrient A, and nutrient B solutions, helping growers manage nutrient solution conditions more efficiently.

Hydroponic Nutrient Controller

What Is a Nutrient Controller?

A Nutrient Controller is an automatic device used to monitor and regulate the condition of nutrient solutions in hydroponic systems. It typically measures pH and electrical conductivity (EC), while some models also monitor water temperature and control dosing equipment.

The pH value indicates how acidic or alkaline the nutrient solution is, while EC measures its electrical conductivity and helps estimate the concentration of dissolved nutrients. Both values are important for managing nutrient availability in soilless cultivation.

The G&N Hydroponic Nutrient Controller integrates several functions:

  • pH Monitoring: Measures the acidity or alkalinity of the nutrient solution.

  • EC Monitoring: Tracks nutrient solution concentration through electrical conductivity.

  • Temperature Monitoring: Detects reservoir water temperature.

  • Automatic Dosing: Activates dosing pumps to add pH adjusters and nutrient solutions.

  • Alarm Protection: Provides high and low alarms when monitored values move outside preset ranges.

  • Sensor Calibration: Supports pH and EC sensor calibration to help maintain measurement accuracy.

By combining these functions, the GN01 works as a PH EC Controller and Nutrient Solution Controller for hydroponic growing operations.


How Does a Hydroponic Nutrient Controller Work?

A Hydroponic Nutrient Controller works by continuously monitoring the nutrient solution in a reservoir and comparing the measured values with preset target ranges. When an adjustment is required, the controller activates the corresponding dosing pump.

The working process includes five main steps.

1. Sensor Detection

The pH sensor and EC sensor detect the current condition of the nutrient solution. A built-in temperature sensor monitors the reservoir temperature.

2. Digital Data Display

The controller reads the sensor signals and displays the pH, EC, and temperature values on its digital panel. Growers can check the current solution condition and adjust the target settings.

3. Comparison with Preset Values

The controller compares the measured values with the preset ranges. For example, when the pH value becomes higher than the target setting, the system identifies that an adjustment may be needed.

4. Automatic Nutrient Dosing

When the measured value moves outside the preset range, the controller can activate the corresponding dosing pump.

The four dosing pumps can be configured for different liquid inputs:

  • pH Up solution

  • pH Down solution

  • Nutrient A solution

  • Nutrient B solution

The automatic pH dosing function adjusts acidity or alkalinity, while nutrient dosing helps regulate EC by adding fertilizer solution.

5. Continuous Monitoring and Adjustment

After dosing, the controller continues monitoring the nutrient solution. This automatic monitoring and adjustment process helps growers maintain more consistent solution conditions and reduces the need for repeated manual testing.

Hydroponic Nutrient Controller

Key Features of the G&N Nutrient Controller

Digital pH, EC, and Temperature Monitoring

The GN01 Hydroponic Nutrient Controller monitors three important parameters: pH, EC, and water temperature. Digital monitoring allows growers to check reservoir conditions more conveniently and make nutrient management decisions based on measured data.

Automatic pH Adjustment

As an Automatic pH Dosing System, the controller can activate dosing pumps to add pH Up or pH Down solution when the measured pH moves outside the preset range.

This function helps reduce repeated manual pH testing and adjustment, particularly in commercial hydroponic operations.

Automatic Hydroponic Nutrient Dosing

The controller can also work as an Automatic Hydroponic Nutrient Doser. When the EC value is below the preset range, the system can activate nutrient dosing pumps to add nutrient A and B solutions.

This helps growers manage nutrient concentration more consistently in reservoir-based hydroponic systems.

Integrated pH and EC Control

Unlike a basic pH testing kit or handheld EC meter, a PH EC Controller combines digital monitoring with automatic dosing functions.

The integrated design allows growers to monitor pH and EC values and manage the corresponding dosing equipment through one controller. It is suitable for applications requiring regular nutrient solution management.

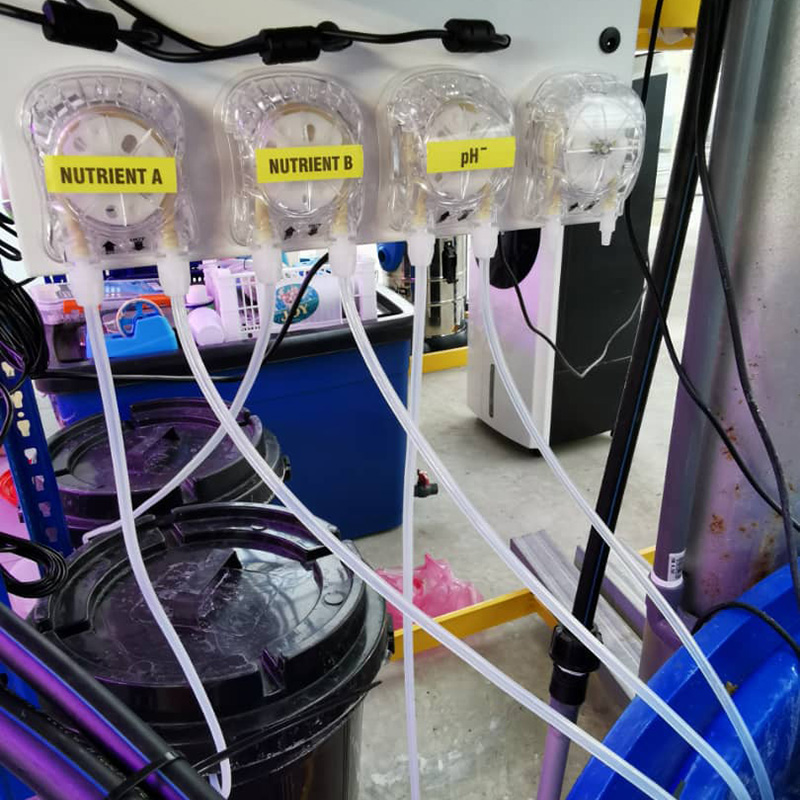

Four Independent Dosing Pumps

The GN01 is equipped with four dosing pumps for different liquid inputs. They can be used for pH Up, pH Down, nutrient A, and nutrient B solutions, providing an integrated approach to pH adjustment and nutrient dosing.

High and Low Alarm Protection

The controller features high and low alarm functions. When monitored pH or EC values move beyond the preset range, the alarm reminds growers to check the nutrient solution and system condition.

This helps operators identify abnormal readings and respond in time.

Sensor Calibration and Easy Operation

The system supports pH and EC sensor calibration. Regular calibration is important for maintaining reliable sensor readings during long-term operation.

Its digital interface provides a convenient way to view measured values and configure control settings for daily hydroponic management.


Product Specifications

ItemSpecification
Product NameNutrient Controller / Hydroponic Nutrient Controller
Model NumberGN01
Product TypeDigital Nutrient Controller
ApplicationAgriculture and Hydroponic Planting
UsageVegetable Growing
Input PowerAC 110–240V / 50–60Hz
Working Temperature4–40°C
Product Size49 × 43 × 34.5 cm / 49 × 43 × 43.5 cm
ColorBlack
SensorspH Sensor, EC Sensor, Built-in Temperature Sensor
Dosing PumpsFour Dosing Pumps
Optional SystemIrrigation System
Suitable SystemsHydroponic Farms, Greenhouses, Vertical Farms, Indoor Farming, Soilless Cultivation

Applications of the Hydroponic Nutrient Controller

Hydroponic Farms

The Hydroponic Nutrient Controller is suitable for reservoir-based hydroponic systems, including NFT, DWC, drip hydroponics, and other soilless growing configurations.

It helps growers monitor and adjust nutrient solution conditions for different crop production cycles.

Greenhouse Vegetable Growing

As a Greenhouse Nutrient Controller, the GN01 can support nutrient solution management in greenhouse vegetable production.

Typical crops include:

  • Lettuce and leafy greens

  • Basil, mint, and other herbs

  • Tomatoes

  • Cucumbers

  • Peppers

Vertical Farming Systems

Vertical farms often operate multiple growing layers within a controlled indoor environment. Consistent nutrient solution management is important for maintaining growing conditions across production areas.

A digital Nutrient Solution Controller helps operators monitor reservoir conditions and reduce repetitive manual adjustments.

Indoor Farming and Soilless Cultivation

For indoor grow rooms and commercial soilless cultivation projects, an automatic nutrient controller can simplify daily nutrient management by combining sensor monitoring, dosing, and alarm functions.

Nutrient Controller

Why Use an Automatic Nutrient Dosing System?

In small hydroponic setups, growers may use manual testing kits and add nutrient solutions by hand. However, as the growing area expands, manual operation can require more time and may lead to inconsistent adjustments.

A Hydroponic Dosing Controller helps address these challenges by combining monitoring and automatic dosing.

Key benefits include:

  • More consistent pH and EC management: Monitors important nutrient solution parameters.

  • Reduced manual workload: Automates routine dosing based on preset values.

  • Convenient nutrient adjustment: Uses separate dosing pumps for pH adjusters and nutrient solutions.

  • Improved monitoring efficiency: Displays pH, EC, and temperature readings digitally.

  • Abnormal-value alerts: High and low alarms remind operators to check the system.

  • Suitable for commercial growing: Supports hydroponic farms, greenhouses, and vertical farming projects.

Automatic dosing helps improve management consistency, but growers should still regularly check sensor calibration, dosing performance, nutrient solution conditions, and reservoir operation.


Nutrient Controller vs. Manual pH and EC Testing Kit

A manual General Hydroponics pH Kit or handheld EC meter is commonly used to test nutrient solution conditions. Growers then make adjustments manually based on the readings.

A PH EC Controller provides a more integrated approach by combining digital measurement with automatic dosing functions.

ComparisonManual pH/EC Testing KitAutomatic Nutrient Controller
MeasurementManual testingSensor-based monitoring
pH AdjustmentManual additionAutomatic dosing
Nutrient DosingManual additionAutomatic dosing through pumps
Temperature MonitoringDepends on separate equipmentBuilt-in temperature sensor
Alarm FunctionUsually not integratedHigh and low alarm protection
OperationRequires frequent manual checksReduces routine manual operation
Typical ApplicationSmall hydroponic setupsGreenhouses and commercial hydroponic systems

For growers managing larger reservoirs or commercial growing projects, an Automated pH and Nutrient Controller can help simplify daily nutrient management.


Choose G&N for Hydroponic Nutrient Management

G&N provides hydroponic growing equipment and nutrient management solutions for greenhouse, indoor farming, and commercial soilless cultivation projects.

The GN01 Nutrient Controller integrates pH monitoring, EC monitoring, temperature detection, four dosing pumps, and alarm protection into one system. It is designed to help growers manage nutrient solution conditions more efficiently across different hydroponic applications.

Whether you are building a greenhouse hydroponic system, expanding a vertical farm, or upgrading an existing nutrient management setup, the G&N Hydroponic Nutrient Controller offers an integrated solution for automatic pH and nutrient dosing.

Contact G&N to learn more about the GN01 Nutrient Controller and discuss your hydroponic project requirements.


Frequently Asked Questions

What does a Nutrient Controller do?

A Nutrient Controller monitors and adjusts nutrient solution conditions in hydroponic systems. It can measure pH, EC, and temperature, and activate dosing pumps to add pH adjusters or nutrient solutions when required.

What is the difference between a Nutrient Controller and a pH EC Controller?

These terms often refer to similar equipment. A Nutrient Controller emphasizes overall nutrient solution management, while a pH EC Controller highlights pH and electrical conductivity monitoring and adjustment.

Can a Hydroponic Nutrient Controller automatically adjust pH?

Yes. The GN01 can activate dosing pumps to add pH Up or pH Down solution when the measured pH value moves outside the preset range.

Can a Nutrient Controller automatically control EC?

The GN01 monitors EC and can activate nutrient dosing pumps to add nutrient A and B solutions when EC is below the preset range.

How many dosing pumps does the GN01 have?

The GN01 is equipped with four dosing pumps. They can be configured for pH Up, pH Down, nutrient A, and nutrient B solutions.

Can this controller monitor water temperature?

Yes. The GN01 includes a built-in temperature sensor for monitoring the temperature of the nutrient solution in the reservoir.

Is the GN01 suitable for NFT and DWC systems?

Yes. It can be used in reservoir-based hydroponic applications, including NFT and DWC systems, as well as drip hydroponics and other soilless cultivation setups.

Does the Nutrient Controller require regular maintenance?

Yes. Regular maintenance should include checking sensor condition, calibrating pH and EC sensors, inspecting dosing pumps and liquid lines, and confirming that the system is operating correctly.

What power supply does the GN01 require?

The GN01 supports AC 110–240V input at 50–60Hz.
